The 30 port Smart USB Type-C Charging Trolley, is a central unit that not only secure but can support PD3.0 multiple voltage modes and charge the battery for smart devices such as: Smart Phones, Pads, Portable Batteries, Chromebook and Notebook which have Type-C socket for charging.

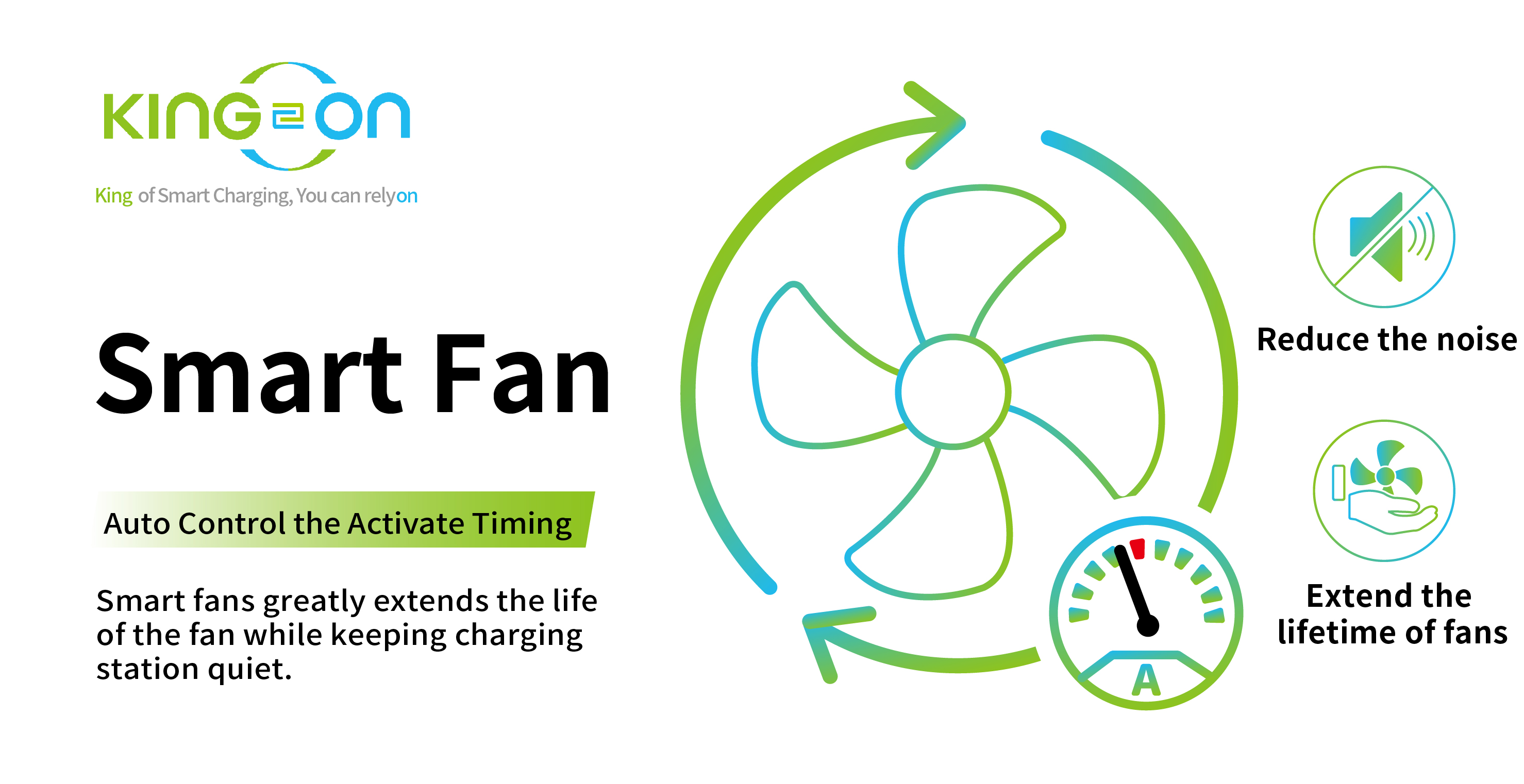

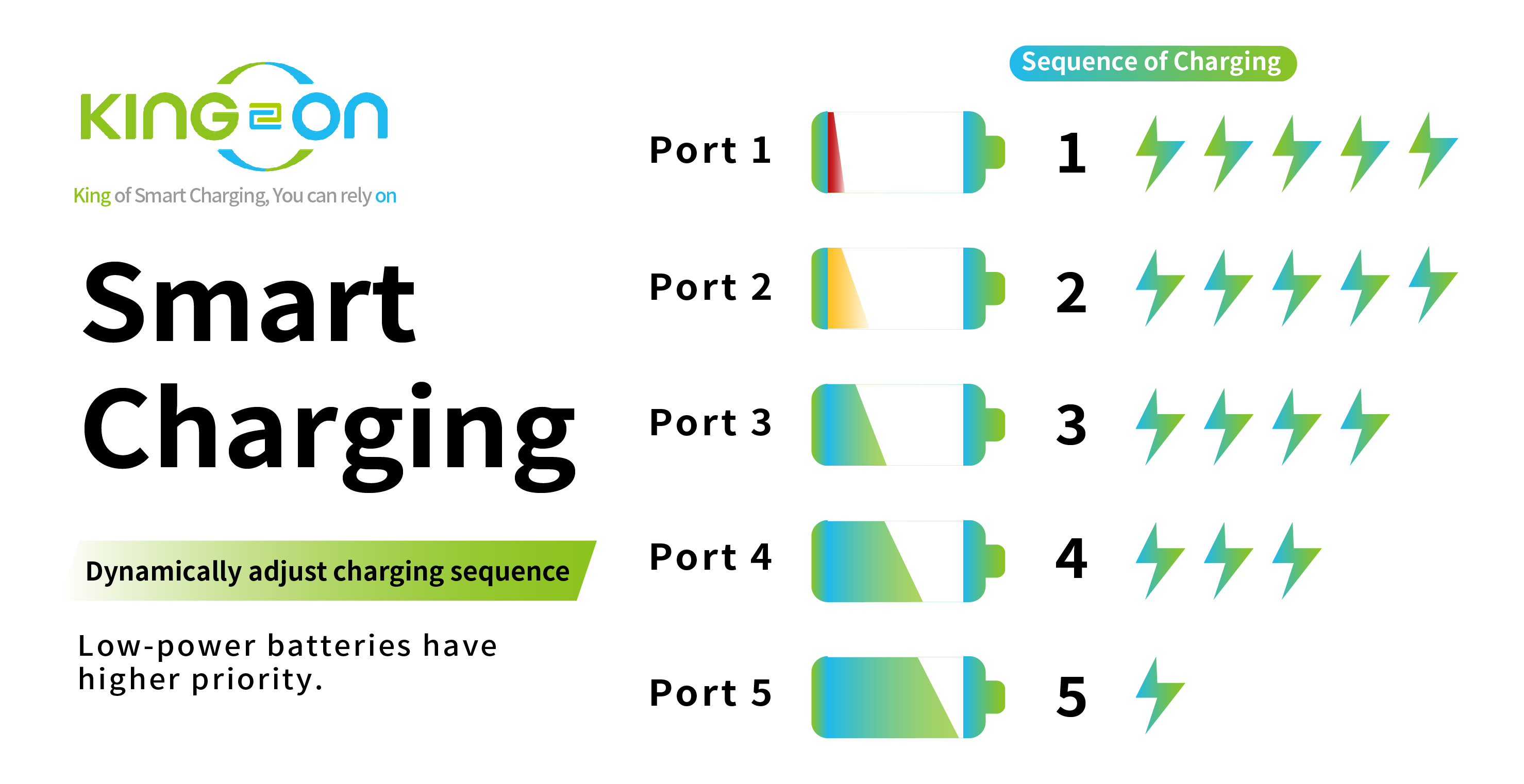

The Charging Trolley, SCMR30A, has the smart power allocation for each charging device need, which controls current, voltage and heat perfectly all by the electrical part. Cooling Fans design makes the trolley easy to maintain at lower operating temperature.

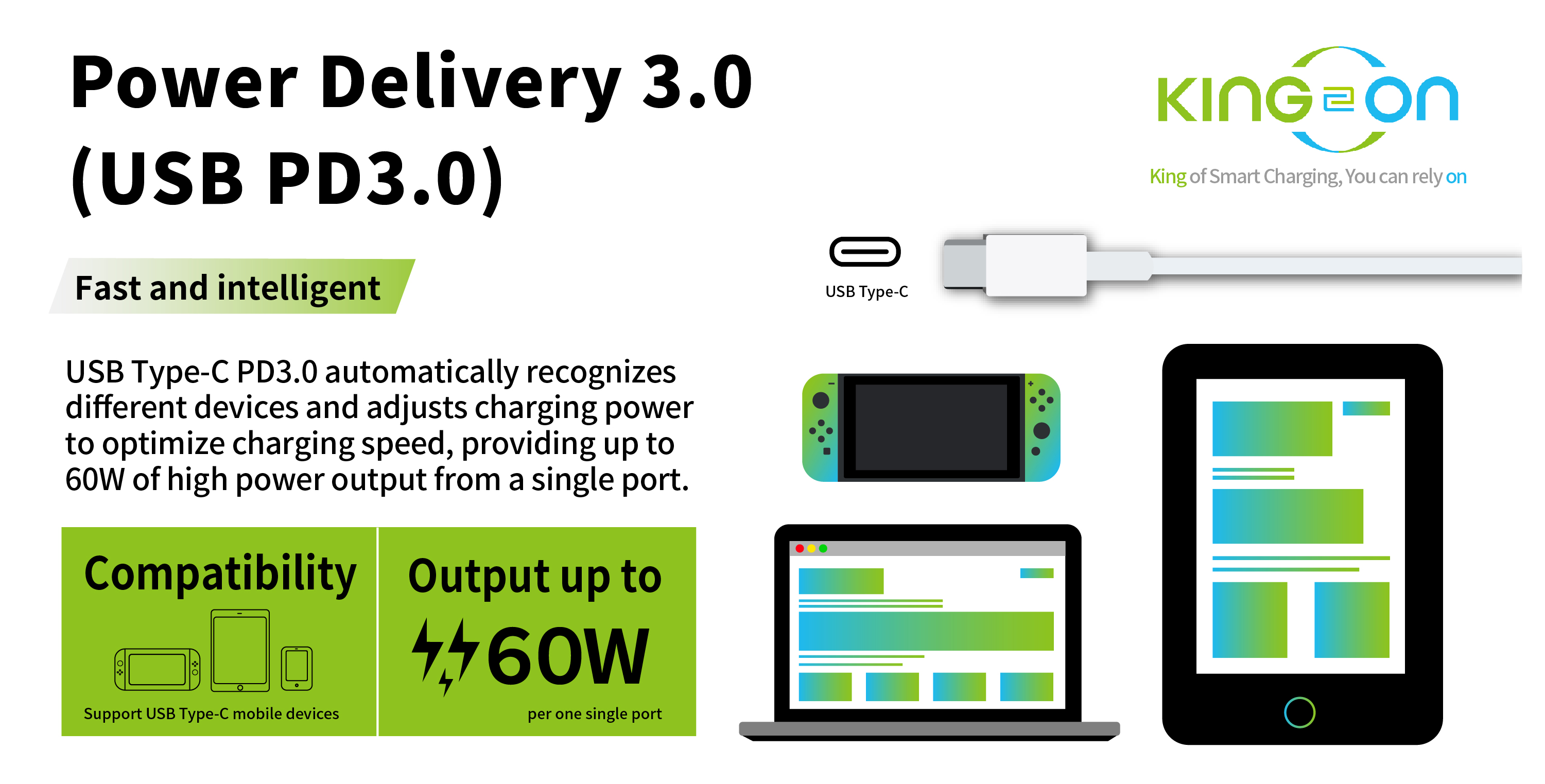

SCMR30A provides the PD3.0 charging mode, which includes 5V,9V,12V,15V,20V with 3A for fully-charging selection. It can provide fast charging of 30-port devices.

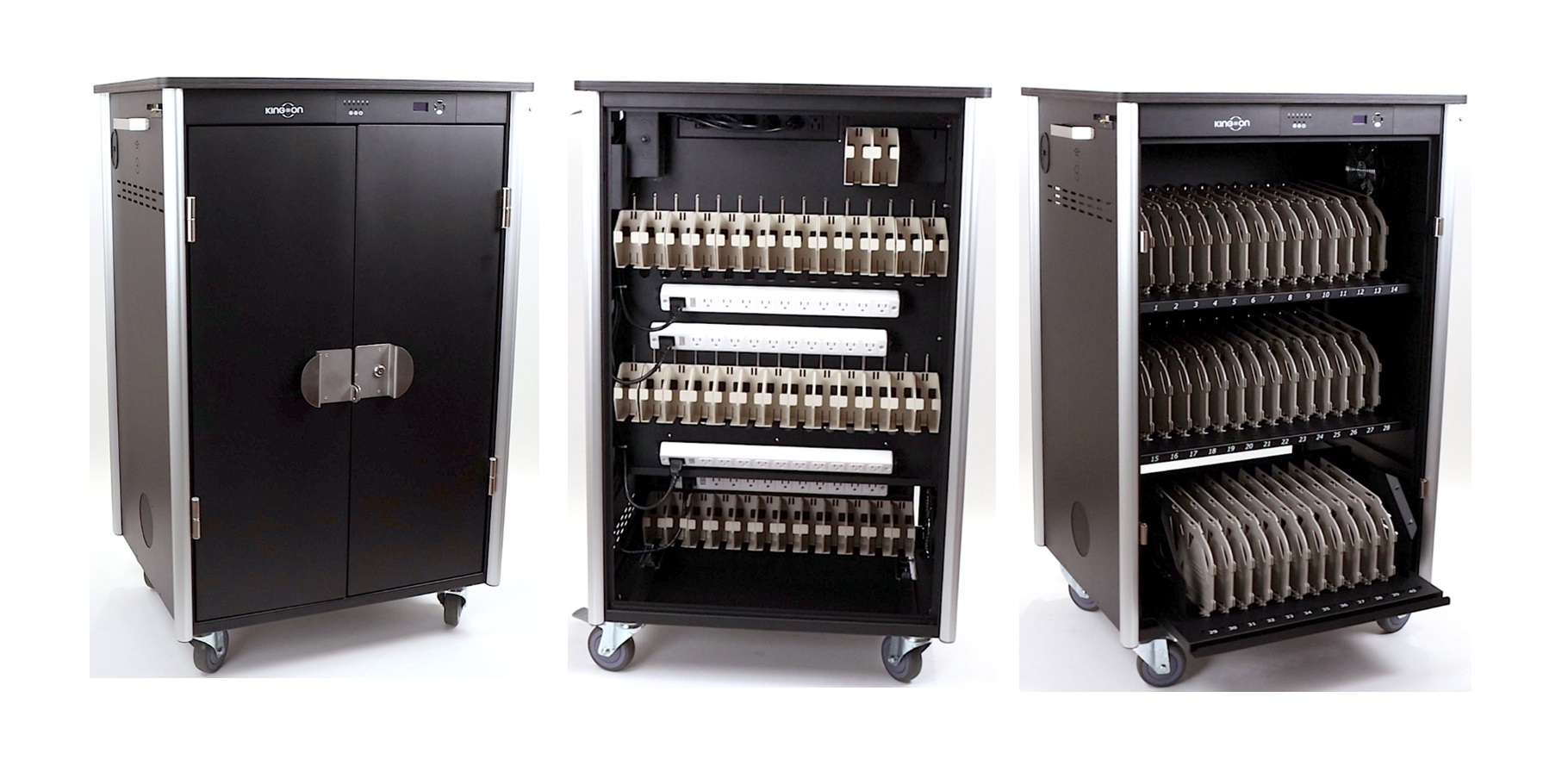

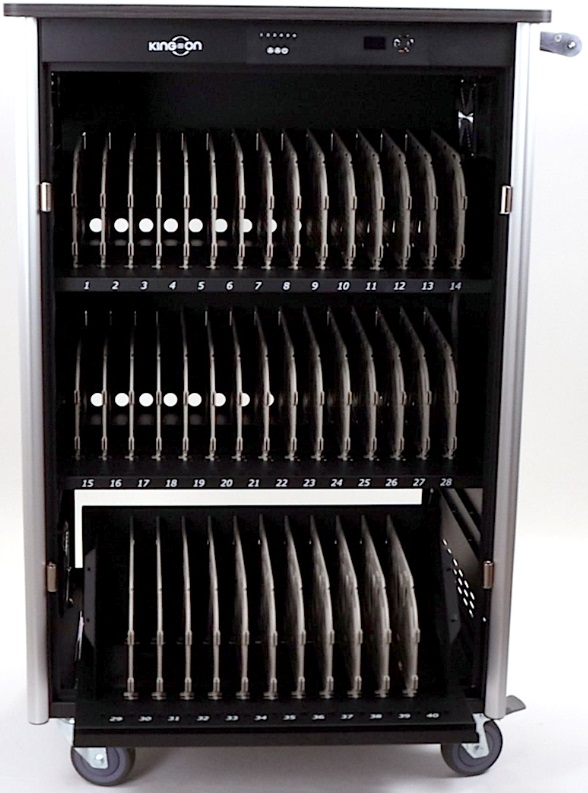

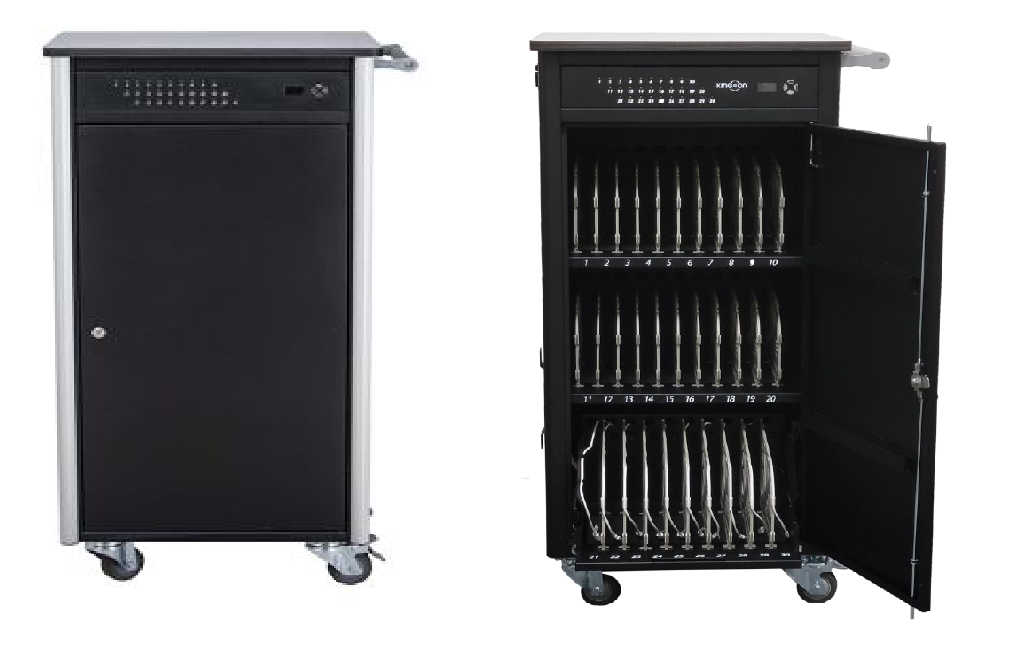

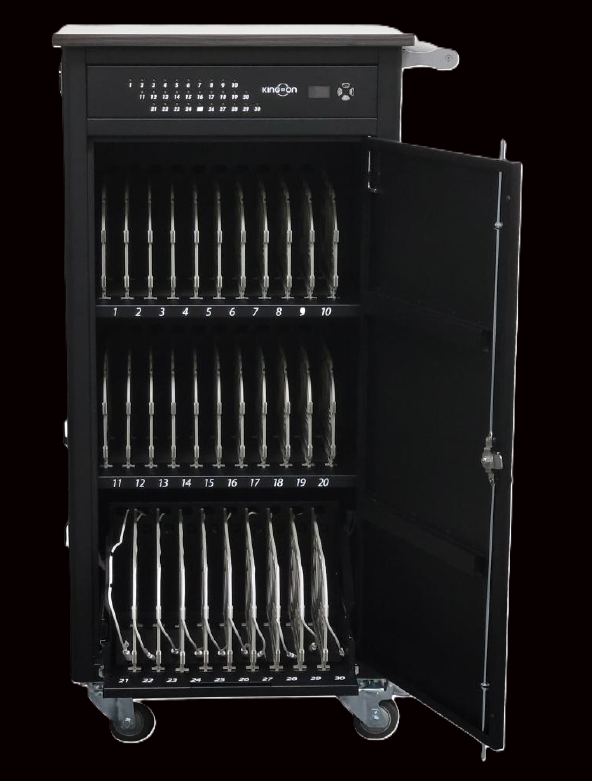

SCMR30A uses solid cold-rolled steel plates with flexible universal wheels to protect valuable mobile devices while making it easy to move a large amount of information equipment. It is the best solution for schools to store mobile devices. Individual USB Type-C wire racks and friendly cable management reduces the use of power supplies, making device storage easier and easier to use.

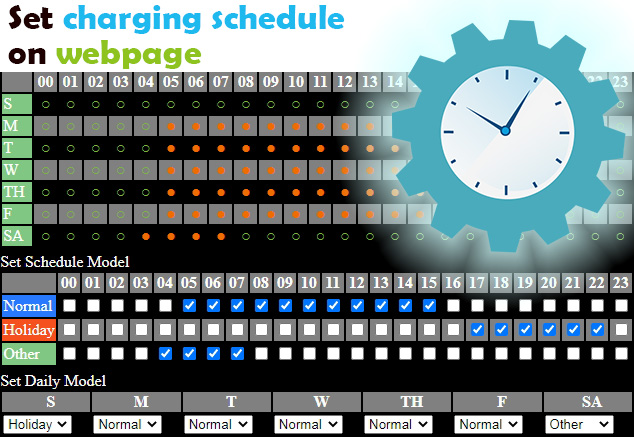

SCMR30A provides scheduling function in OLED with top, down, right, left keys for your better selecting for charging time with an eye to saving the life of batteries.
| Product | Mobile Charging Cart |
|---|---|

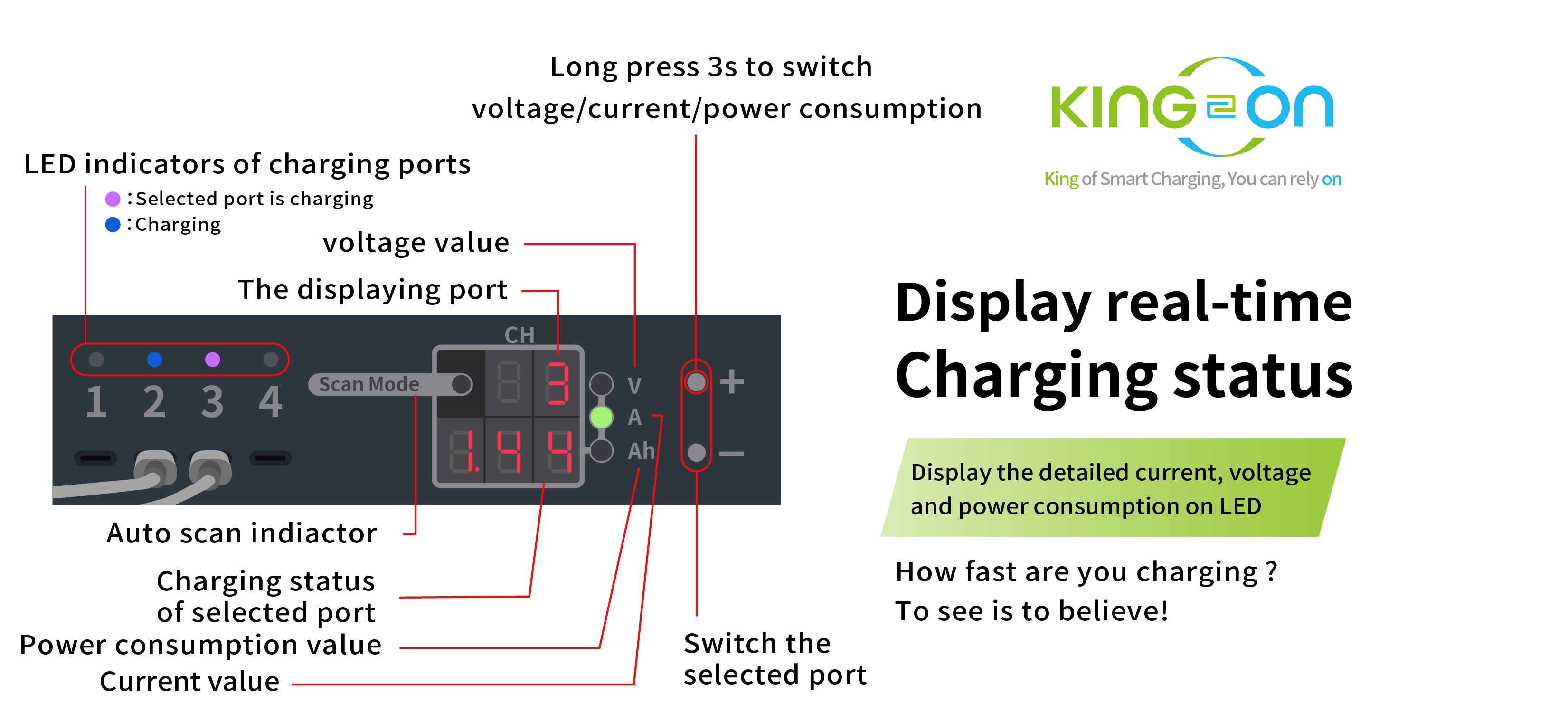

| Display | OLED Display Board:
Displays the specified Type-C Port voltage, current and power accumulation. Display setting mode: time setting, schedule setting LED status indicators: Red: Selected USB Type-C charging port Blue light flashes slowly: Slow charging Blue light flashes quickly: Quick charging Blue light is On: The device is finished in the charging mode Purple light flashes slowly: Selected the USB Type-C Port for slow charging Purple light flashes quickly: Selected the USB Type-C Port for fast charging Purple light is On: The selected Type-C device is finished in the charging mode |
| Power | Power Input:
AC 100 ~ 240V ; 50/60 Hz, 5A (x3) |
| Charging Protection | 1. USB Type C, Over Current Protection (OCP)
2. USB Type C, Short-circuit Protection (SCP) 3. USB Type-C, Total DC Power Protection (TCP) 4. When the total power consumption exceeds the limit while using both the external outlet and the charging device simultaneously, the protection switch will be activated. At this time, all devices will enter a power-off protection mode. Please adjust the power usage mode to reduce the total power consumption, then reset the protection switch and power on again 5. When the malfunctions, the total output power will be temporarily reduced depending on the load condition. |
| Over-charging Protection | Manually control on charging time through the scheduling function |
| Charging Profile | USB PD3.0, the USB Type-C output of each port:
1. DC-5V, Max. output: 3A, 15W 2. DC-9V, Max. output:3A, 27W 3. DC-12V, Max. output: 3A, 36W 4. DC-15V, Max. output: 3A, 45W 5. DC-20V, Max. output: 3A, 60W 6. PPS mode |
| Cable management | Independent Dividers and Cable management with nuts |
| Security | Front door with a 3-point security lock / back door with a security lock |
| Compartment | By divider slot |
| Slot Dimensions | 30 x 330 x 245 mm (W x D x H) |
| Cart Dimensions | 53 x 50 x 111 cm (W x D x H) |
| Package Dimensions | 59.5 x 54 x 117 cm (W x D x H) |
| Casters | 4” swivel castors x4 (2 of castors are lockable) |
| Net Weight | 51Kg |
| Gross Weight (with package) | 56Kg |

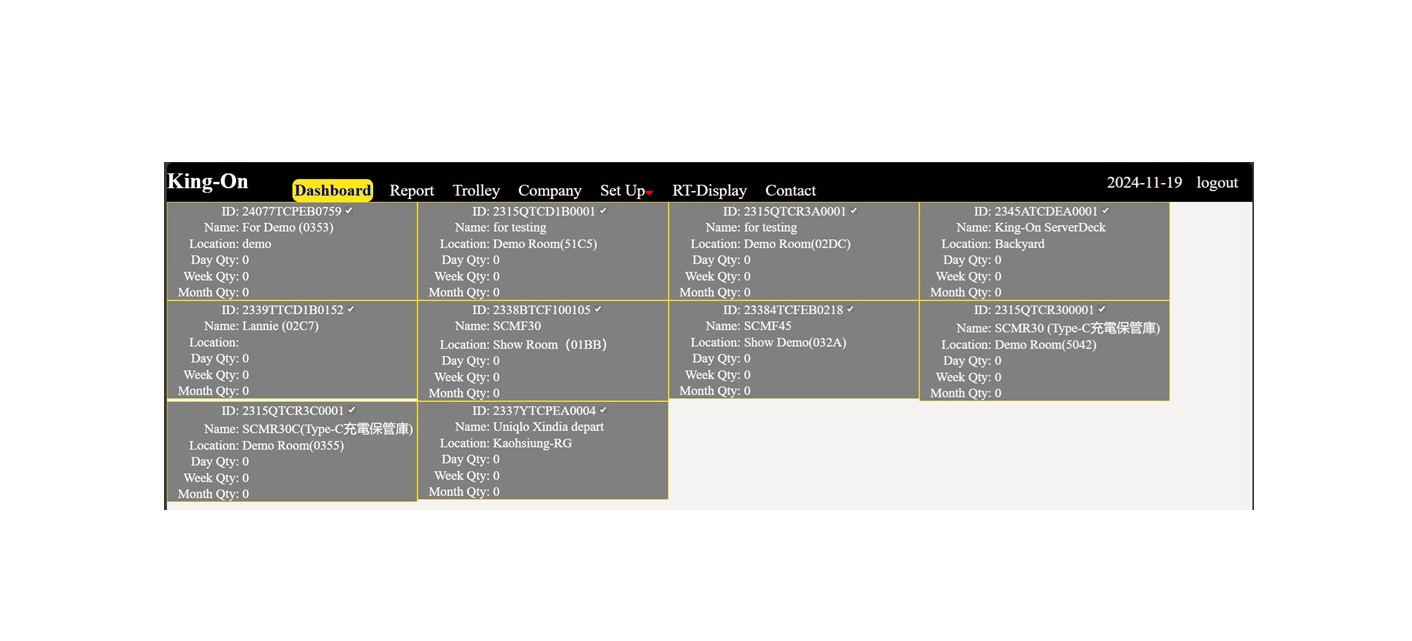

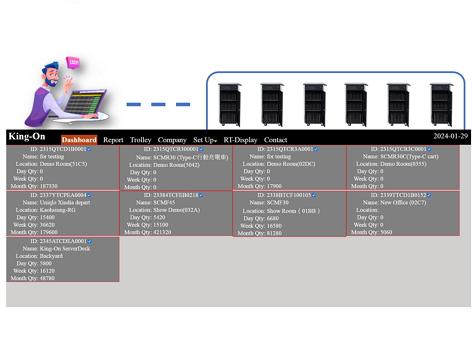

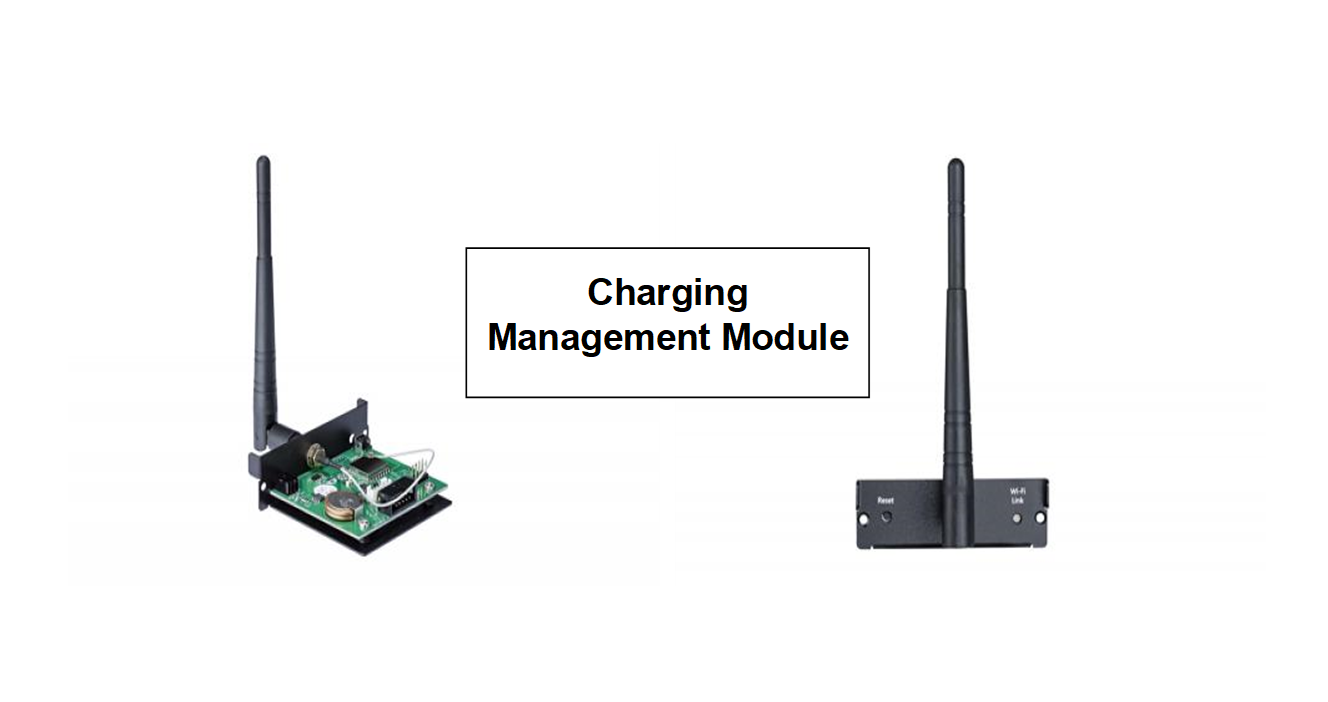

King-On Wireless CMM (Charging Management Module) assists users in connecting King-On CMM by Wi-Fi via laptop, phone or tablet, and users may monitor, manage and operate King-On charging station products by the browsers via their wireless devices. Each CMM is able to manage up to 3 charging stations connected by RS-485 cable, then monitor and manage charging ports (8-20 ports) for each station.
